SKU: DT830D
$15.90
$15.90
Flat Rate Shipping
12 Month Warranty
Description

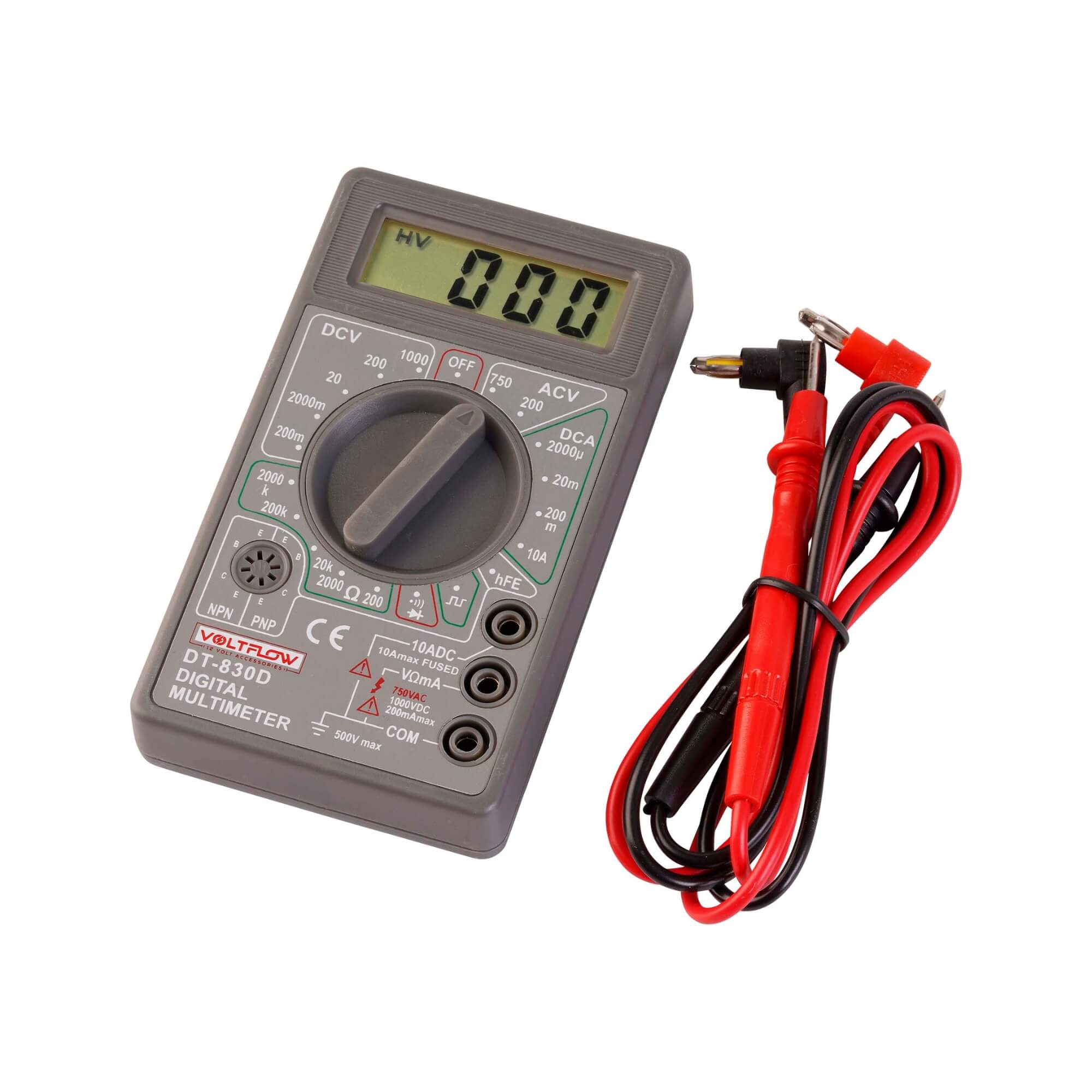

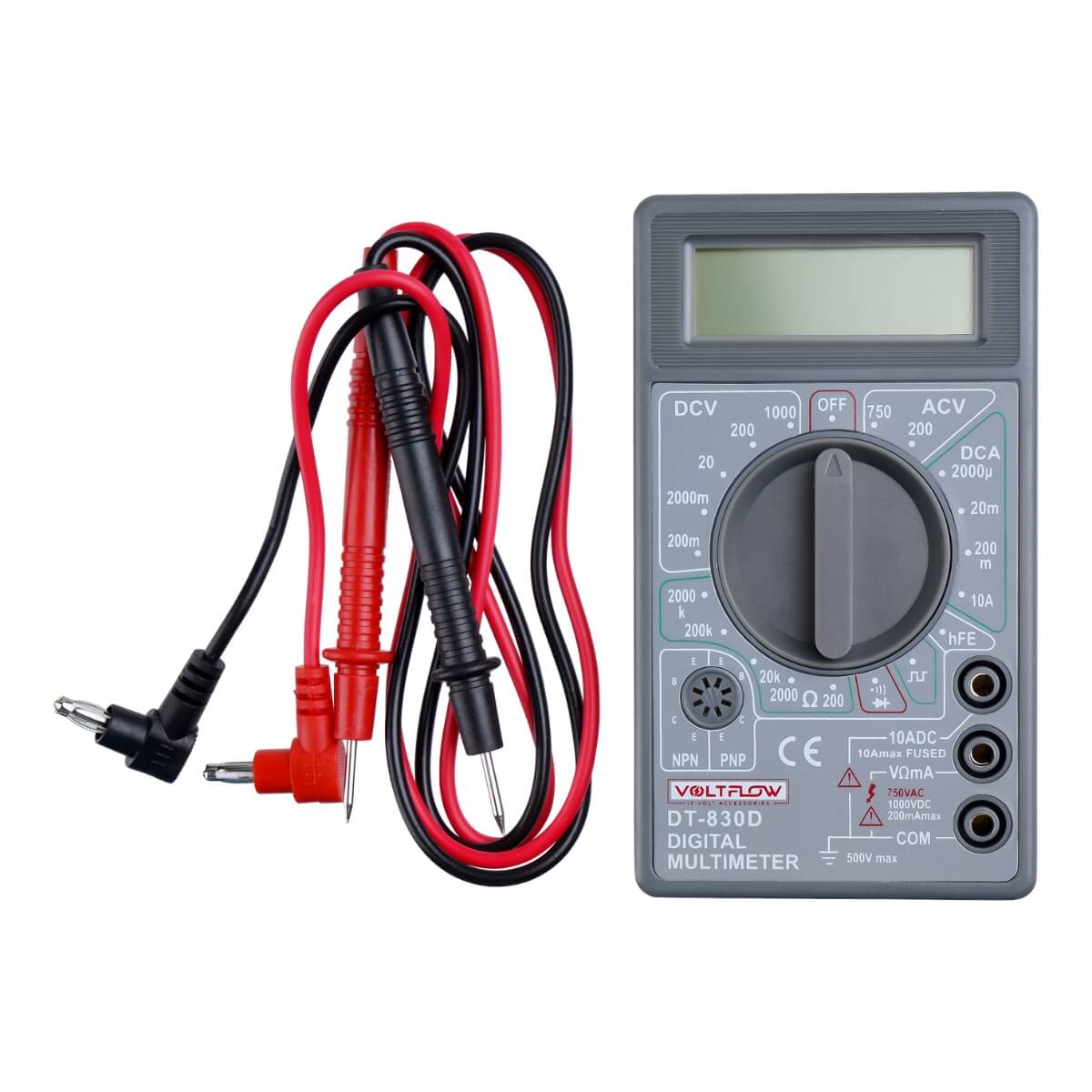

VoltFlow's Digital Multimeter with its easy read LCD display is an indispensable tool suitable for testing, diagnosing and troubleshooting electrical circuits, components and devices. It is designed to measure multiple electrical values ensuring accurate digital readings when you're testing AC or DC.

  • Easy to use: With a simple twist dial operation, it offers 19 ranges & 7 functions See table below:.
  • 9volt Battery: Uses & comes with a 9 Volt battery, with low battery indication light.

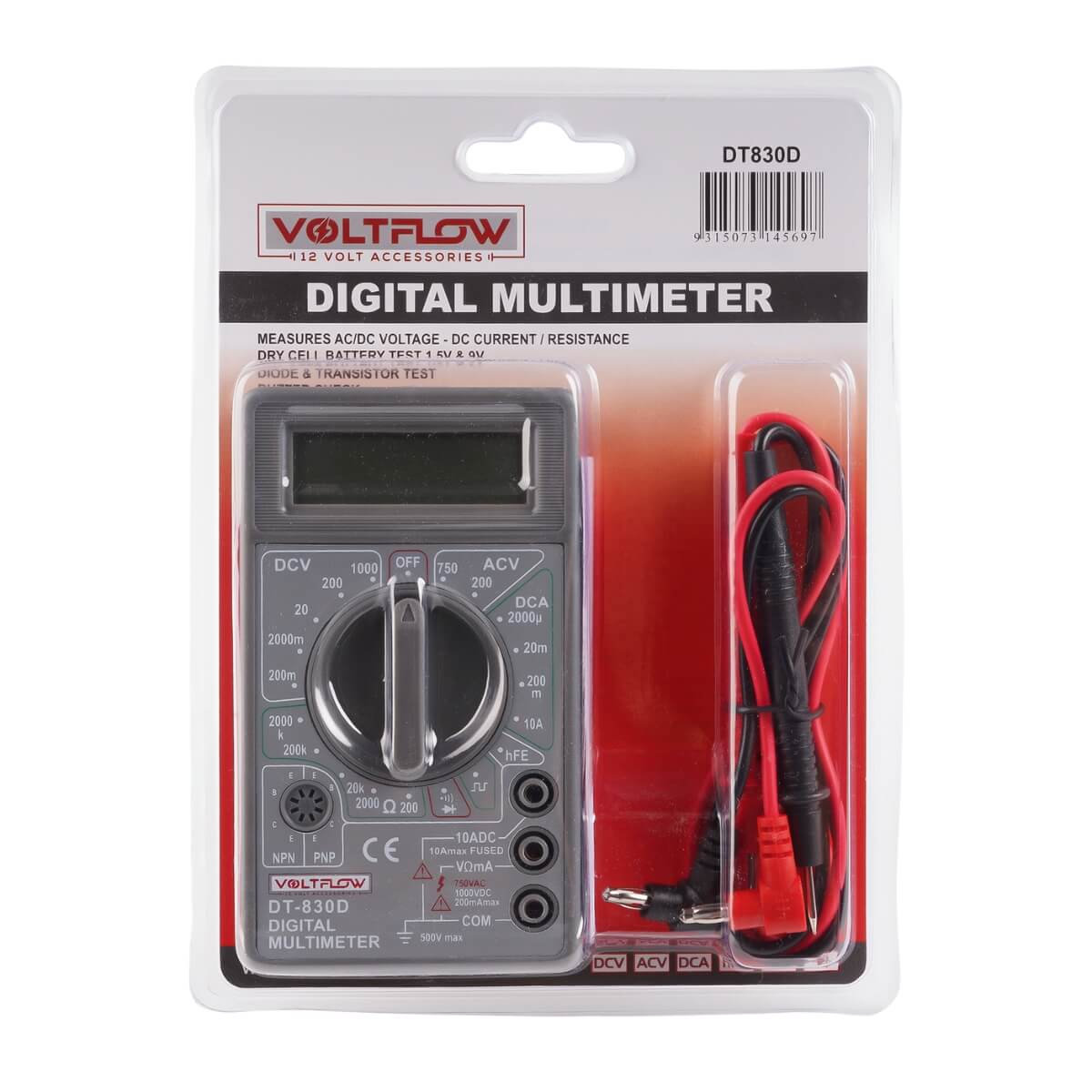

  • Included: Insulated probes, 70cm test leads, battery & instruction manual.

Specifications
L: 126mm x W: 70mm x H: 28mm

Function

Range

Resolution

Accuracy

Overload Protection



DCV

200mV

100uV



±(0.5%rdg+2dgts)

500VDC/350VAC

2000mv

1mV

1000VDC/750VAC

20V

10mV

200V

100mV

1000V

1V

ACV

200V

100mV

±(1.2%rdg+2dgts)

750VAC

750V

1V


DCA

200uA

100nA



±(1.0%rdg+2dgts)



500mA/250V Fuse

2000uA

1uA

20mA

10uA

200mA

100uA

10A

10mA

±(1.8%rdg+2dgts)

10A Unfused



Resistor
(ohms)

200 Ω

100m Ω

 ±(0.8%rdg+2dgts)



2000 Ω

1 Ω

20k Ω

10 Ω

200k Ω

100 Ω

2000k Ω

1k Ω

Transistor
(HFE)

NPN/PNP

0-1000

Vc ce approx. 3V
1 b approx. 10uA

(830B / 832 / 830D /838 / 830E)

Temperature

-40°C - 1000°C

1°C

± (3%rdg+2dgts)

(838 / 830C / 830E)

Battery Test

1.5V



Dischargeable current 50mA



(830A)

9V

Dischargeable current 5mA
